Vertical Turbine

Last updated: 7 Aug 2025
409 Views

Overview

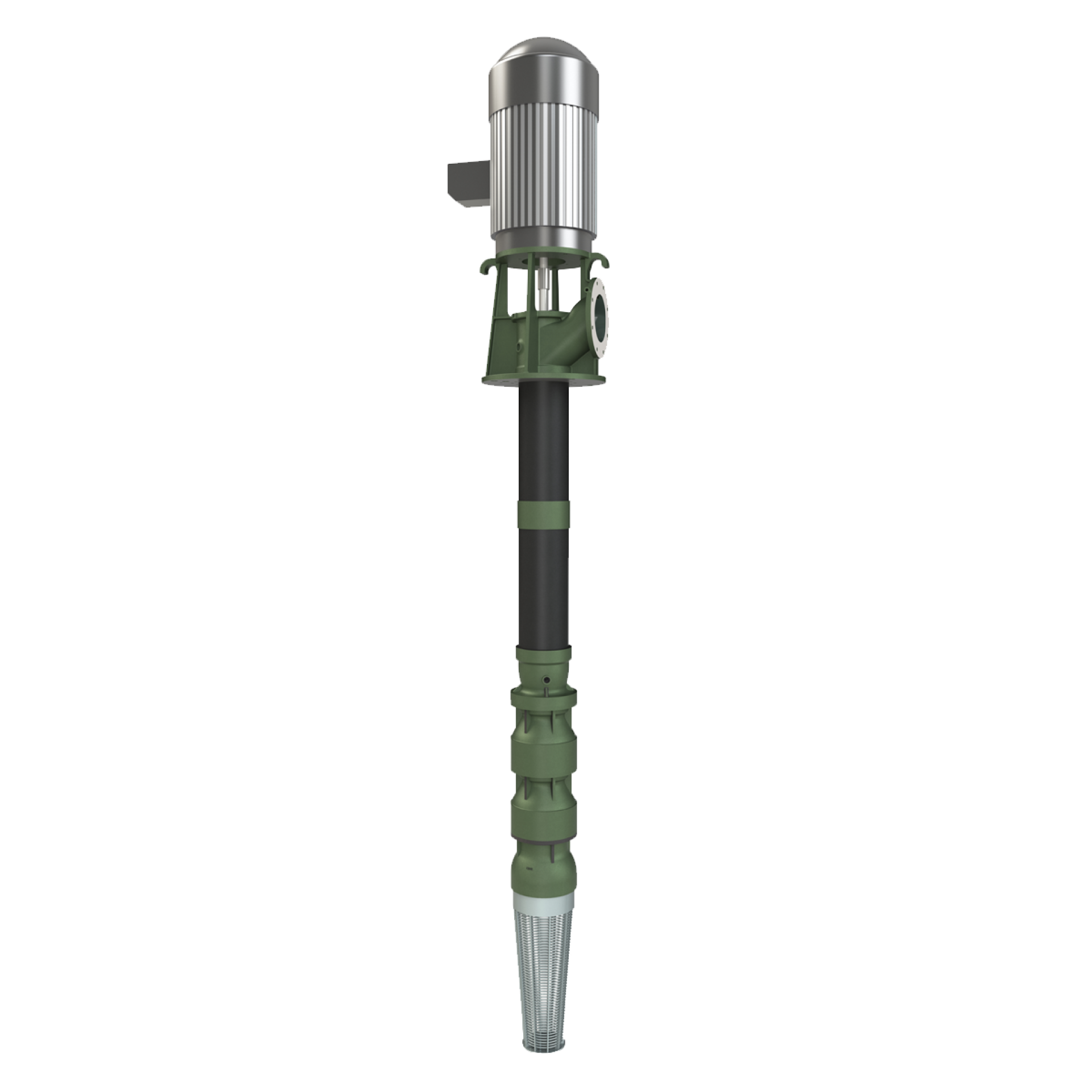

Vertical Turbine Pumps
Lifting fluids from underground water sources or reservoirs to the surface, these rotodynamic pumps have multistage radial or modified radial flow vertical impellers, with several impellers encased in a bowl assembly. These pumps are widely used in various applications such as water supply, irrigation, and industrial processes where the water source is underground or at a lower elevation than required. Vertical turbine pumps are known for their high efficiency and reliability in moving large volumes over significant vertical distances.

Features

  • Open and Enclosed Lineshaft Configurations
  • Extra Lateral
  • Special coatings and materials
  • Wear Rings
  • Engineering Analysis
  • Threading to match the existing site design
  • Mechanical Seal Options

Certifications/Standards

  • NSFI/ANSI/CAN 61-G & 372 Certified
  • NSF 61 Potable Water
  • HI, AWWA Design Standard
  • ASME Design Standard

Capabilities

Fabrication

Discharge Heads, Column Pipes, Underground Discharge, Motor Stands, Suction Cans, Custom Design

Materials
Standard 201 and 316 SS Investment Cast Impellers
Ductile Iron & 316SS Bowls
Ductile Iron Cast Discharge Heads
316 SS Fabricated Discharge Heads

Testing Facility
Bowl Assembly Performance Testing
Witnessed & Non-Witnessed
