Vertical Inline Pump, Multistage Pump
Descripion

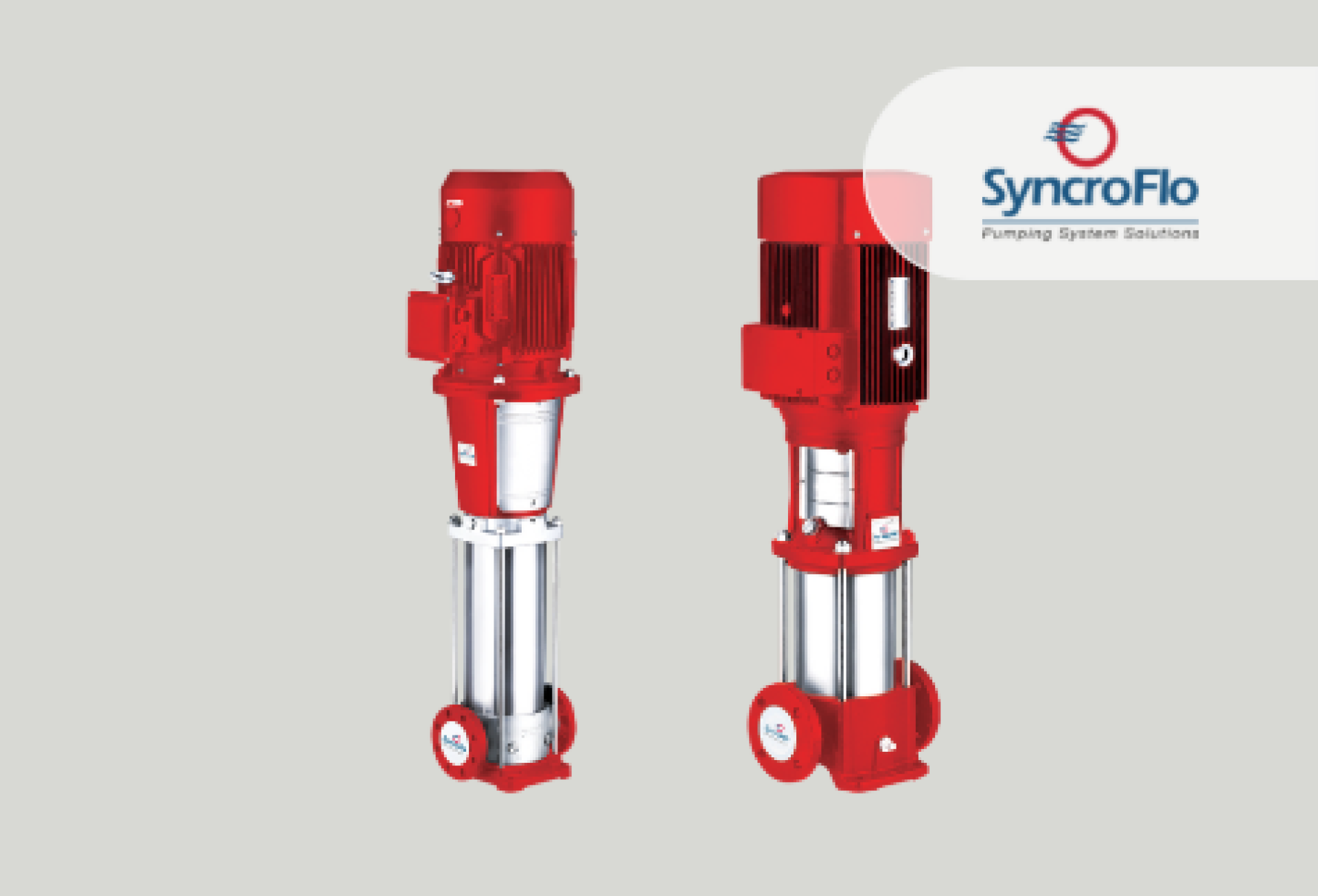

SYVS/SYVR is a multi-stage vertical inline pump designed to deliver large volumes of water for high head applications, helping customers achieve high turnaround time and productivity. Thus, these lightweight and durable pumps are ideal for a wide range of industrial applications such as in water treatment plants and small capacity power plants as well as in various other industries such as building, dairy and food processing, etc. The high discharge capacity and head range of these pumps also make these useful for agricultural applications such as field irrigation (flooding), sprinkler irrigation and drip-feed irrigation, as well as for domestic applications for facilitating supply of clean water.
Technical Data
- Model Name: SYV
- Head Range: Up to 323 metres
- Discharge Range: Up to 110 m3/hr
- Power Ratings: 0.37 to 45 Kw (0.5 to 60 HP)
- Voltage Range: 370 to 440 volts (three phase)
- Protection: IP 55Insulation: F class
- PH Range: 4 to 10
- Altitude: Up to 1000 metres
- Liquid Temperature Range: -20° C to 120°C
- Motors: All motors are designed under IE2 specification.
Features
- Superior Pump Hydraulics
- Cartridge Type Mechanical Seal
- Splined Shaft
- Replaceable Wearing Parts
- Dynamically Balanced Rotating Parts
- Easy Maintainable Design
- Suitable for Horizontal Applications
- High Head Applications
Applications
- Suitable for transferring liquids of low viscosity, non-inflammable and non-explosive, not containing solid particles or fibers
- Water supply & drainage for high-rise buildings. filtration and transfer at waterworks, pressure boosting in main pipe
- Washing and cleaning systems, boiler feeding, cooling water circulation, water treatment systems, auxiliary system, support equipment
- Ultra-filtration systems, reverse-osmosis systems, distillation systems, separators, swimming pools
- Agricultural irrigation: sprinkler irrigation, drip-feed irrigation
- Food & beverage industry
- Fire-fighting system
