THRUSTREAM – SPLIT CASE PUMPS
Last updated: 5 Aug 2025
48 Views
Descripion

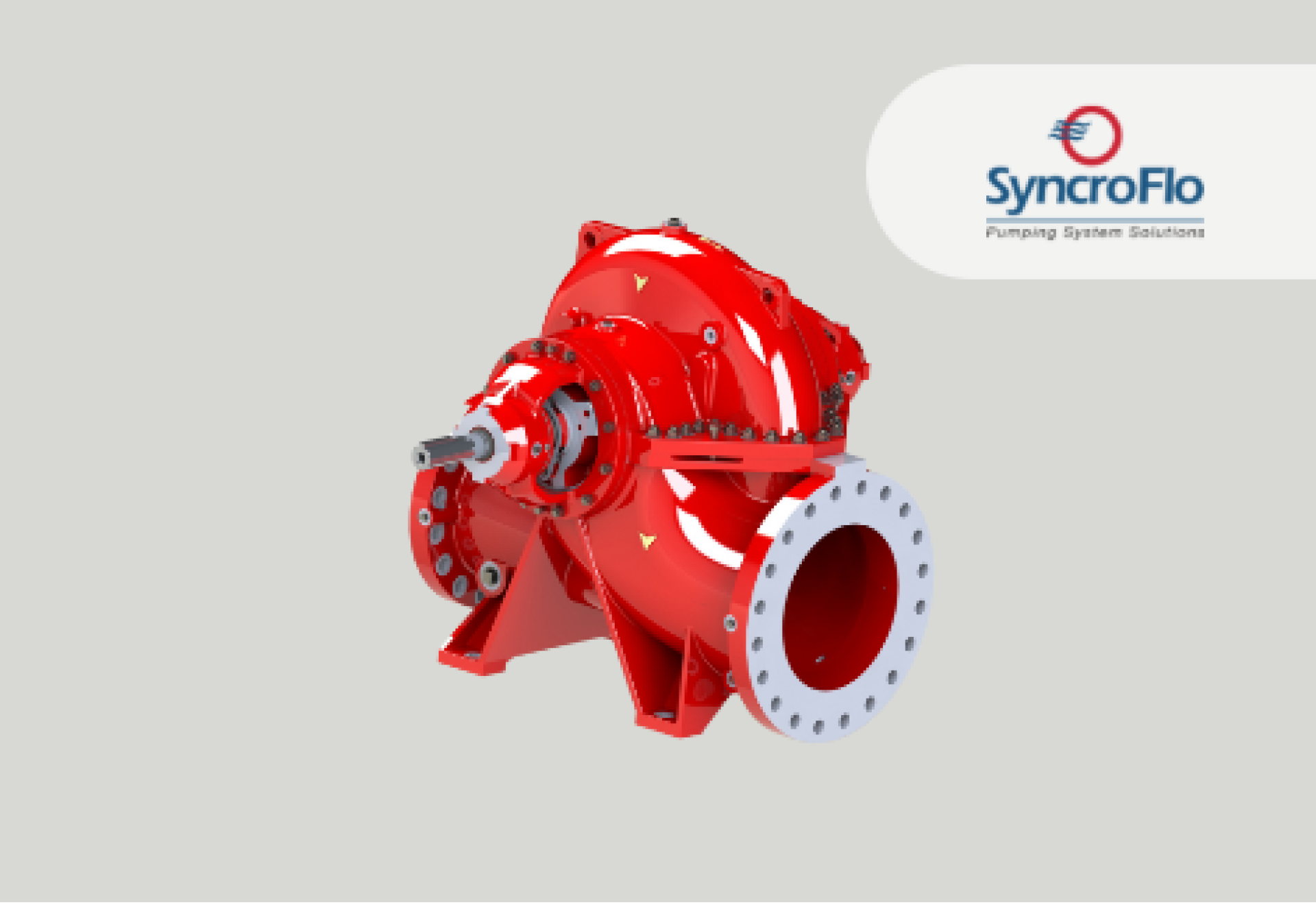

SyncroFlo Thrustream FM/UL Approved Fire Pumps are avail- able for duties ranging from 200 USgpm to 5000 USgpm and are suitable for electric or diesel drives. SyncroFlo also supplies Vertical, End-Suction and In-line pumps. SyncroFlo Thrustream FM/UL Approved Fire Pumps are available with either inch or metric fittings.
Technical Data
- Model Name: SyncroFlo Thrustream
- Delivery size: 5 in. to 14 in.
- Head: 865 ft (375 psi)
- Flow: 200-5000 gpm
Features
- Axially split casing rotating element can be removed without disturbing pipework
- Exceptional hydraulic efficiencies
- Double and single entry back to back impellers reduce end thrust, increase efficiency and bearing life
- Modular design for maximum interchangeability (multiple impeller selections)
- Stainless steel impellers and shaft as standard
- Internal high efficiency coating as standard
- Cartridge mechanical seals as standard
- Double row thrust bearing
- Wide operating range and extended bearing life
- Reduced efficiency degradation
- Approved to FM and/or UL standards
- In compliance with NFPA 20
- Used in pump as turbine applications
Applications
- Sprinkler systems
- Hydrant systems
- Deluge systems
- Monitor systems
- Water curtain
