Turbostream
Last updated: 5 Aug 2025
41 Views
Description

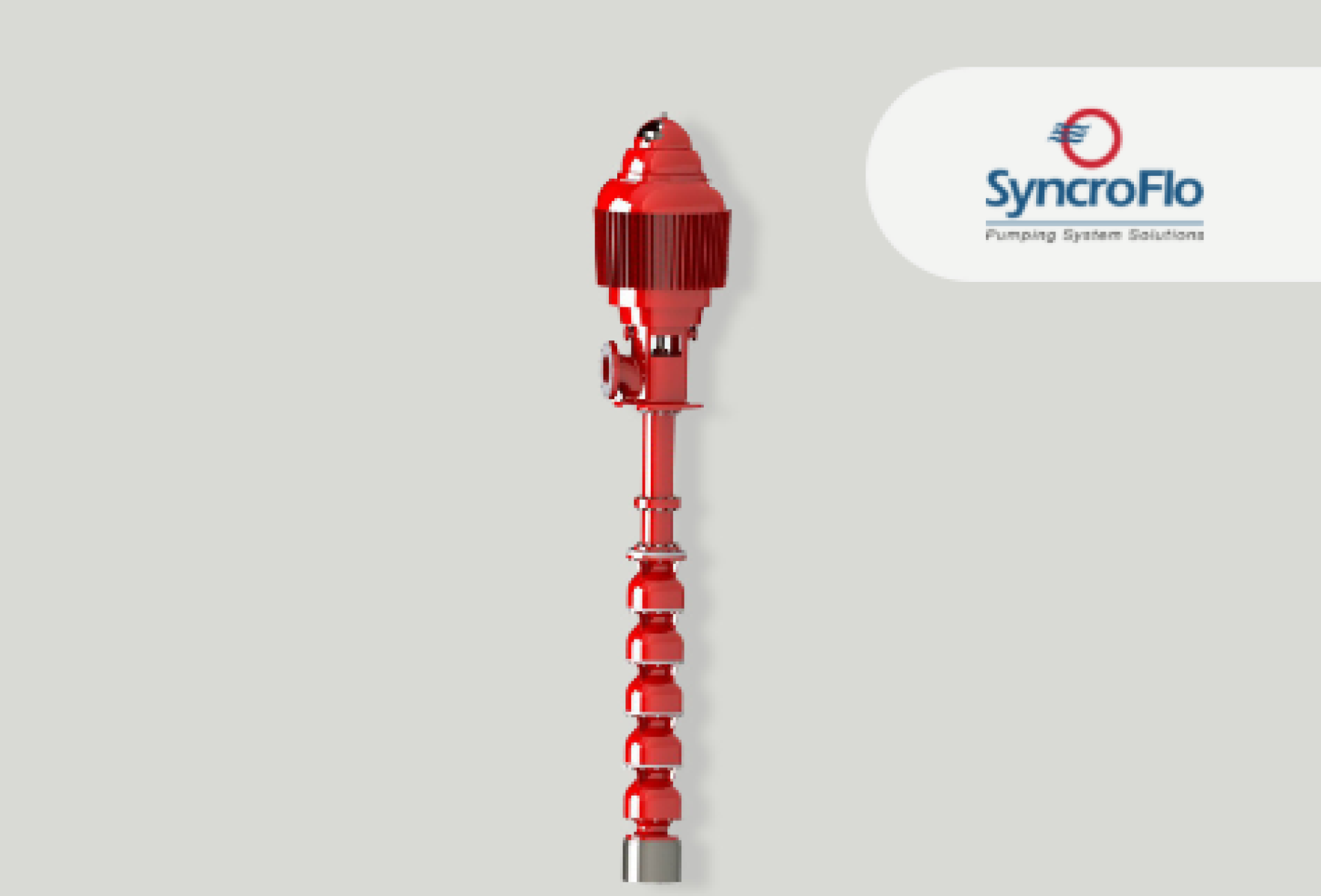

TURBOSTREAM VERTICAL TURBINE PUMPS series of Vertical Turbine Pumps (VT) consist of three different functional units, namely pump unit, column unit and head unit. VEP pumps are designed for maximum operating speed of 1800 RPM. These pumps are suitable for operating at 60 Hz supply frequency. All the pump models are designed for anti-clockwise direction only, when viewed from top end.
Technical Data
- Model Name: Vertical Turbine Pumps
- Delivery size: 4 in. to 10 in.
- Heads: Up to 565 ft. (245 psi)
- Flow: 200-2500 gpm
Features
- Space saving
- Low maintenance costs
- High hydraulic efficiency
- Priming problems eliminated since pump ends are submerged in liquid
- 60 models, with bowls, heads and columns optimized for performance and cost
- Wide choice of materials
- Diffuser bowls ensure balanced axial loading
- Soft packing or mechanical seals
- API construction
- Approved to FM and UL standards, all of which are compliant to NFPA 20
- Nuclear certification
- Dry and wet well installations
Applications
- Sprinkler Systems
- Hydrant Systems
- Deluge Systems
- Monitor Systems
- Water Curtain
